Conveyor Belt Solar Shield Covers

Conveyor Belt Solar-Shield ® XL 750 heat belt is offered with polyester/nylon, polyester/polyester and fiberglass fabric reinforcements.

See the difference with the Conveyor Belt Solar Shield Covers

Heat-Resistant Cover resists crackling and hardening Solar-Shield belting performs over the long run, retaining its flexibility despite punishing conditions and loads. Less cracking and hardening translates into longer life and reduced replacement costs. The Solar- Shield compound retains its heat resistant qualities after prolonged exposure to 400 degree F hot loads. High Temperature resistance to tearing and abrasion Load after load, Solar Shield stands up to prolonged exposure. This reduced maintenance and downtime helps lower overall operating costs. Synthetic carcass construction Solar-Shield's synthetic carcass provides great dimensional stability and strength at high temperatures and operating tensions up to 1200 PIW. Solar-Shield carcass with fiberglass reinforcement Fiberglass reinforcement throughout all plies of the carcass provides maximum protection when temperatures are not constant. The carcass stands up to "hot shots," resisting burn through up to 1000 degree F.

Call us Now 866-711-4673 Request A Quote

SOLAR-SHIELD® XL 750 SOLAR-SHIELD XL 750 Tension Range 220 PIW to 1200 PIW Markets Applications Cover Compounds DESCRIPTION: Goodyear Engineered Products Solar-Shield® XL 750 heat belt is offered with polyester/nylon, polyester/polyester and fiberglass fabric reinforcements. It offers high performance in extreme hot material applications. The fiberglass fabric option offers the highest degree of burn-through resistance of any current available fabric reinforcement.



																 • Cement • Foundry • Iron Ore • Steel Production • Taconite • Cement Clinker • Coke Plants • Hot Powdery Materials • Sintered Ore • Steel Mills • Taconite Pellets • Solar-Shield® XL 750

																 Features & Benefits
 Heat-resistant cover resists cracking and hardening
Solar-Shield
®
XL 750 belting performs over the long run, while retaining
its flexibility despite punishing conditions and loads. Less cracking and hard-
ening
translates into longer life and reduced replacement costs

The SOLAR-SHIELD
®
XL 750 compound improves heat resistance above
and beyond our 400°F compound and significantly extends belt life. The
Solar-Shield XL 750 was designed to handle hot material loads up to 750°F,
providing extreme longevity in severe heat applications.

High-temperature resistance to tearing and abrasion
Load after load, Solar-Shield XL 750 stands up to prolonged exposure. This
reduced maintenance and downtime helps lower overall operating costs.
Synthetic carcass construction
Solar-Shield XL 750’s synthetic carcass provides great dimensional stability
an

25
High-temperature resistance to tearing and abrasion
Load after load, Solar-Shield XL 750 stands up to prolonged exposure. This
reduced maintenance and downtime helps lower overall operating costs.
Synthetic carcass construction
Solar-Shield XL 750’s synthetic carcass provides great dimensional stability
and strength at high temperatures and operating tensions up to 1200 PIW.
Solar-Shield XL 750 carcass with fiberglass reinforcement
Fiberglass reinforcement throughout all plies of the carcass provides
maximum protection when temperatures are not constant. The carcass
stands up to “hot shots,” resisting burn-through up to 1000°F.
Heat-resistant cover resists cracking and hardening
Solar-Shield
®
XL 750 belting performs over the long run, while retaining
its flexibility despite punishing conditions and loads. Less cracking and hard-
ening
translates into longer life and reduced replacement costs.
The SOLAR-SHIELD
®
XL 750 compound improves heat resistance above
and beyond our 400°F compound and significantly extends belt life. The
Solar-Shield XL 750 was designed to handle hot material loads up to 750°F,
providing extreme longevity in severe heat applications.
2000
°
1400
°
650
°
600
°
550
°
500
°
450
°
400
°
350
°
300
°
250
°
200
°
150
°
100
°

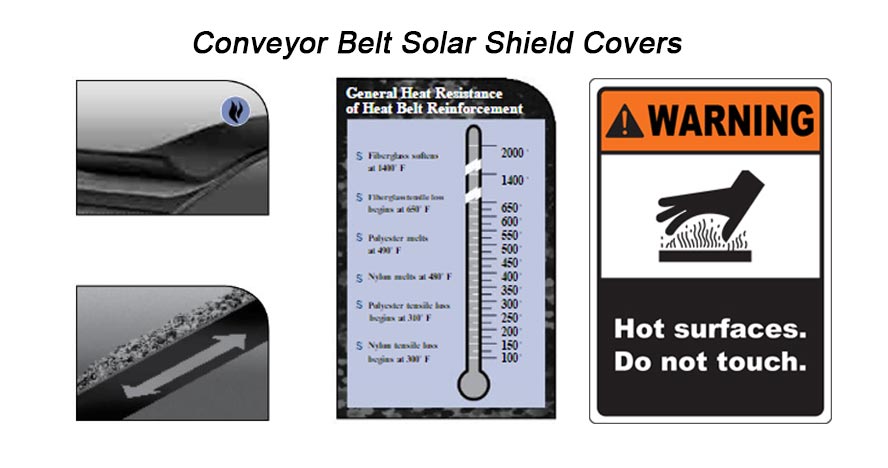

General Heat Resistance
of Heat Belt Reinforcement
s
Fiberglass softens
at 1400° F
s
Fiberglass tensile loss
begins at 650° F
s
Polyester melts
at 490° F
s
Nylon melts at 480° F
s
Polyester tensile loss
begins at 310° F
s
Nylon tensile loss
begins at 300° F

SOLAR-SHIELD XL 750 LOAD SUPPORT (Maximum Belt Width) (in.)
On systems with troughing idler spacing greater than 5 ft. OR idler roll gap greater than 1/2”, consult your GTM.
SOLAR-SHIELD XL 750 CONVEYOR BELT DATA - Imperial
Solarshield rated belt tension can exceed 100%, with a maximum of 150%, during starting and stopping conditions.
*
P/P = Poly/Poly GL = Glass P/N = Poly / Nylon
**
Average Permanent elongation values at 100% of rated belt tension are based on ISO 9856 test procedure. Consult your GTM or GAD for elastic & total elongation calculations
S O L A R - S H I E L D
®
X L 7 5 0
SOLAR-SHIELD XL 750 TROUGHABILITY (Minimum Belt Width) (in.) (Table based on ISO 703 Testing Procedure)
SOLAR-SHIELD XL 750 MINIMUM PULLEY DIAMETERS (in.)
If top cover and pulley cover are balanced (ie. 3/16”x3/16”) or less than 1/16” differential (ie. 3/16”x5/32”), add 6” to the minimum belt width.
6”
narrower widths are possible if the belt is broken in for an extended period of time fully loaded. Consult your GTM.
Additional break in time is required when the belt has been stored prior to insulation in ambient temperatures of less than 50 degrees Fahrenheit
Above tables are based on top cover gauge equal or greater than the bottom (pulley) cover gauge.
Solar- Solar- Solar- Solar- Solar- Solar- Solar- Solar- Solar- Solar-
Shield Shield Shield Shield Shield Shield Shield Shield Shield Shield
Idlers
250/2
220/2
GL
375/3
330/3
GL
400/2
500/4
600/3
800/4
1000/5
1200/6
Number of Plies
2
2
2
3
3
4
3
4
5
6
Over 80% Tension
16
30
18
42
16
24
24
30
36
42
60%
to 80% Tension
14
24
16
36
14
20
20
24
30
36
40%
to 60% Tension
12
20
14
30
12
18
18
20
24
30
Up to 40% Tension
12
18
14
24
10
18
16
18
20
24
Tails and Snubs
12
18
14
24
10
18
16
18
20
24
SOLAR- SOLAR- SOLAR- SOLAR- SOLAR- SOLAR- SOLAR- SOLAR- SOLAR- SOLAR-
SHIELD SHIELD SHIELD SHIELD SHIELD SHIELD SHIELD SHIELD SHIELD SHIELD
250/2
220/2
375/3 330/3
GL
400/2
500/4
600/3
800/4
1000/5
1200/6
Number of Plies
2
2
3
3
2
4
3
4
5
6
Fabric Type*
P/N
Glass
P/N
Glass
P/P
P/N
P/P
P/P
P/P
P/P
Vulcanized & Fastener Rating (piw)
250
220
375
330
400
500
600
800
1000
1200
Carcass Gauge (in.)
0.108
0.148
0.182
0.233
0.178
0.253
0.251
0.340
0.429
0.518
Carcass Weight (lbs/sq.ft.)
0.61
0.85
1.04
1.41
0.99
1.45
1.40
1.89
2.39
2.89
Approx 1/32” cover wt (lbs/sq.ft.)
0.18
0.18
0.18
0.18
0.18
0.18
0.18
0.18
0.18
0.18
Avg. Permanent Elongation (%) **
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
Elastic modulus (piw)
30,000
37,000
45,000
55,500
44,000
60,000
66,000
88,000 110,000 132,000
Step Length (in.)
12
18
12
18
16
12
16
16
16
16
Solar- Solar- Solar- Solar- Solar- Solar- Solar- Solar- Solar- Solar-
Shield Shield Shield Shield Shield Shield Shield Shield Shield Shield
Idlers
250/2
220/2
GL
375/3
330/3
GL
400/2
500/4
600/3
800/4
1000/5
1200/6
Number of Plies
2
2
3
3
2
4
3
4
5
6
20
degree idlers
24
18
24
24
24
30
30
36
42
48
35
degree idlers
24
24
30
30
30
36
36
42
48
54
45
degree idlers
30
30
36
36
36
42
42
48
54
60
PIW/Plies - Fabric
Material Weight
0-40
lbs/cu.ft.
41-80
lbs/cu.ft.
81-120
lbs/cu.ft.
Over 120 lbs/cu.ft.
Trough Idlers
20
deg 35 deg 45 deg 20 deg 35 deg 45 deg 20 deg 35 deg 45 deg 20 deg 35 deg 45 deg
250/2 -
P/N
54
48
48
48
42
36
42
42
30
36
30
NR
220/2 -
GL
54
48
42
48
42
36
42
42
NR
36
30
NR
375/3 -
P/N
72
60
60
60
54
48
54
48
42
48
42
NR
330/3 -
GL
72
60
60
60
54
48
54
48
42
48
42
NR
400/2 -
P/P
60
54
54
54
48
42
48
48
42
42
36
30
500/4 -
P/N
84
72
72
72
60
54
72
60
54
60
54
48
600/3 -
P/P
84
72
72
72
60
54
72
60
54
60
54
48
800/4 -
P/P
96
84
84
84
72
72
84
72
60
72
60
54
1000/5 -
P/P
108
96
96
96
84
84
96
84
72
84
72
72
1200/6 -
P/P
116
108
108
108
96
96
108
96
84
96
84
84

Solar- Solar- Solar- Solar- Solar- Solar- Solar- Solar- Solar- Solar-
Shield Shield Shield Shield Shield Shield Shield Shield Shield Shield
Idlers
250/2
220/2
GL
375/3
330/3
GL
400/2
500/4
600/3
800/4
1000/5
1200/6
Number of Plies
2
2
2
3
3
4
3
4
5
6
Over 80% Tension
400
750
450
1050
400
600
600
750
900
1050
60%
to 80% Tension
350
600
400
900
350
500
500
600
750
900
40%
to 60% Tension
300
500
350
750
300
450
450
500
600
750
Up to 40% Tension
300
450
350
600
250
450
400
450
500
600
Tails and Snubs
300
450
350
600
250
450
400
450
500
600
SOLAR-SHIELD XL 750 LOAD SUPPORT (Maximum Belt Width) (mm)
On systems with troughing idler spacing greater than 1.5 m OR idler roll gap greater than 12.7mm, contact Goodyear.
SOLAR-SHIELD XL 750 CONVEYOR BELT DATA - Metric
Solarshield rated belt tension can exceed 100%, with a maximum of 150%, during starting and stopping conditions.
*
P/P = Poly/Poly GL = Glass P/N = Poly / Nylon
**
Average Permanent elongation values at 100% of rated belt tension are based on ISO 9856 test procedure. Consult your GTM or GAD for elastic & total elongation calculations.
S O L A R - S H I E L D
®
X L 7 5 0
SOLAR-SHIELD XL 750 TROUGHABILITY (Minimum Belt Width) (mm) (Table based on ISO 703 Testing Procedure)
SOLAR-SHIELD XL 750 MINIMUM PULLEY DIAMETERS (mm)
If top cover and pulley cover are balanced (ie. 5mm x 5mm) or less than 2 mm differential (ie. 4mm x 3mm), add 150 mm to the minimum belt width.
150
mm narrower widths are possible if the belt is broken in for an extended period of time fully loaded. Consult your GTM.
Additional break in time is required when the belt has been stored prior to insulation in ambient temperatures of less than 10 degrees Centigrade.
Above tables are based on top cover gauge equal or greater than the bottom (pulley) cover gauge.
Solar- Solar- Solar- Solar- Solar- Solar- Solar- Solar- Solar- Solar-
Shield Shield Shield Shield Shield Shield Shield Shield Shield Shield
Idlers
250/2
220/2
GL
375/3
330/3
GL
400/2
500/4
600/3
800/4
1000/5
1200/6
Number of Plies
2
2
3
3
4
4
3
4
5
6
20
degree idlers
600
450
600
600
600
750
750
900
1050
1200
35
degree idlers
600
600
750
750
750
900
900
1050
1200
1400
45
degree idlers
750
750
900
900
900
1050
1050
1200
1400
1500
SOLAR- SOLAR- SOLAR- SOLAR- SOLAR- SOLAR- SOLAR- SOLAR- SOLAR- SOLAR-
SHIELD SHIELD SHIELD SHIELD SHIELD SHIELD SHIELD SHIELD SHIELD SHIELD
250/2
220/2
375/3 330/3
GL
400/2
500/4
600/3
800/4
1000/5
1200/6
Number of Plies
2
2
3
3
2
4
3
4
5
6
Fabric Type
P/N
Glass
P/N
Glass
P/P
P/N
P/P
P/P
P/P
P/P
Vulcanized & Fastener Rating (kN/m)
44
39
66
58
70
88
105
140
175
210
Carcass Gauge (mm)
2.7
3.8
4.6
5.9
4.5
6.4
6.4
8.6
10.9
13.2
Carcass Weight (kg/sq.m)
3.0
4.2
5.1
6.9
4.8
7.1
6.8
9.2
11.7
14.1
Approx 1 mm cover wt (kg/sq.m)
1.1
1.1
1.1
1.1
1.1
1.1
1.1
1.1
1.1
1.1
Avg. Permanent Elongation (%) **
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
Elastic modulus (kN/m)
5,250
6,480
7,880
9,720
7,710
10,510
11,560
15,410
19,260
23,120
Step Length (mm)
300
460
300
460
410
300
410
410
410
410
PIW/Plies - Fabric
Material Weight
0-40
lbs/cu.ft.
41-80
lbs/cu.ft.
81-120
lbs/cu.ft.
Over 120 lbs/cu.ft.
Trough Idlers
20
deg 35 deg 45 deg 20 deg 35 deg 45 deg 20 deg 35 deg 45 deg 20 deg 35 deg 45 deg
250/2 -
P/N
1400
1200
1200
1200
1050
900
1050
1050
750
900
750
NR
220/2 -
GL
1400
1200
1050
1200
1050
900
1050
1050
NR
900
750
NR
375/3 -
P/N
1850
1550
1550
1550
1550
1200
1400
1400 1200
1200
1050
NR
330/3 -
GL
1850
1500
1500
1500
1400
1200
1400
1200
1200
1200
1050
NR
400/2 -
P/P
2150
1850
1850
1850
1500
1400
1850
1500
1200
1500
1400
1200
500/4 -
P/N
2150
1850
1850
1850
1550
1400
1850
1550
1400
1550
1400
1200
600/3 -
P/P
2150
1850
1850
1850
1500
1400
1850
1500
1400
1500
1400
1200
800/4 -
P/P
2450
2150
2150
2150
1850
1850
2150
1850
1500
1850
1500
1400
1000/5 -
P/P
2750
2450
2450
2450
2150
2150
2450
2150
1850
2150
1850
1850
1200/6 -
P/P
2950
2750
2750
2750
2450
2450
2750
2450
2150
2450
2150
2150
